Description

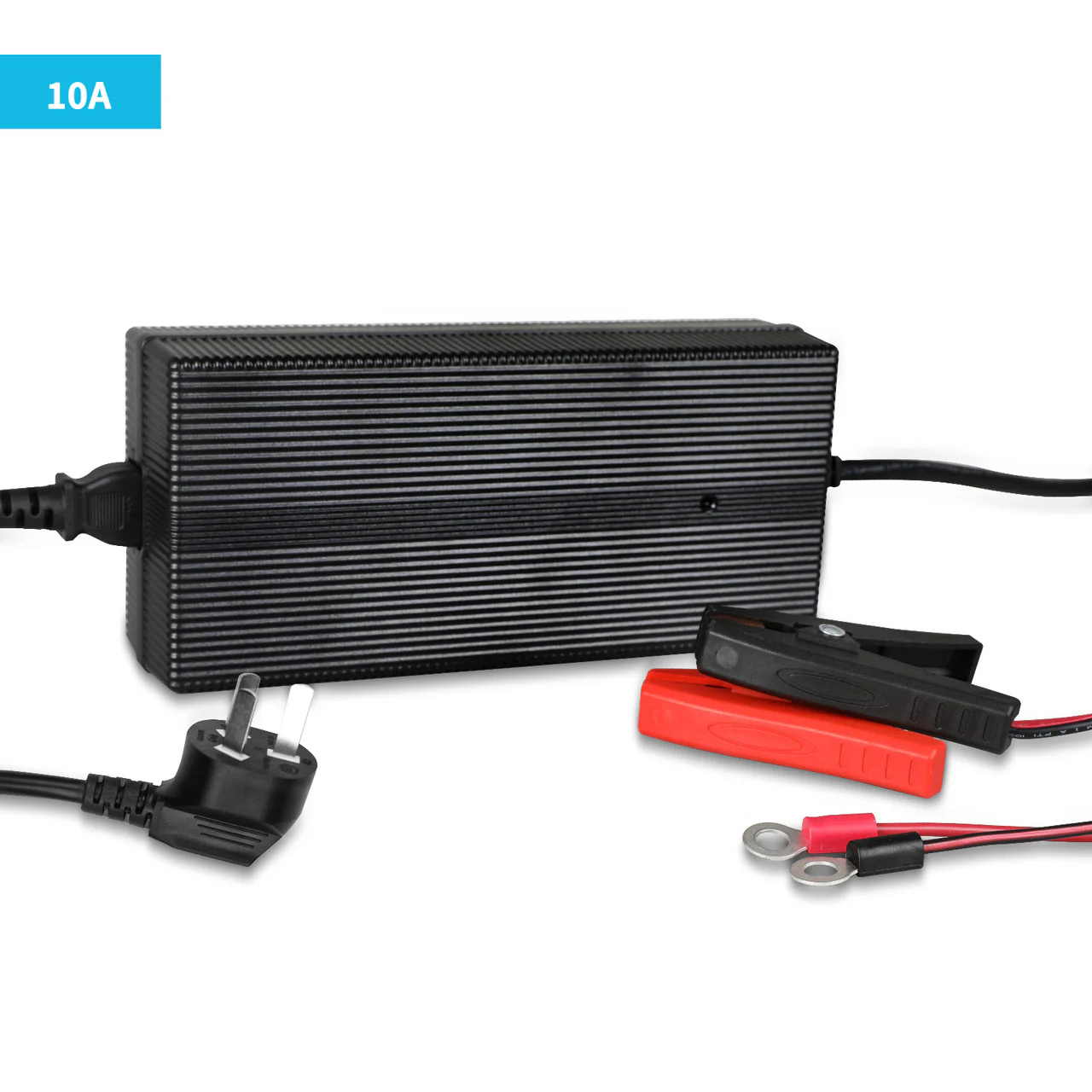

Renogy 24V 10A AC charger is designed for lithium batteries (LifePO4 Battery). The charger has a 3-stage intelligent charging design (CC/CV/trickle) to ensure it charges the lithium battery quickly and efficiently. This battery charger has 6-layer protection functions to realize comprehensive monitoring and protection of the battery. This charger is suitable for RVs, motorbikes, boats, and camper-van.

If you have any questions regarding this product, please submit a case !

KEY FEATURES

Born for Lithium Batteries

This battery charger is designed for lithium batteries. When the lithium battery triggers the low temperature/low voltage while charging, the BMS will turn on the protection, which means the lithium battery cannot be charged and needs to be activated. This charger provides a lithium battery activation function that quickly exits the protection mode and recharges. Along with CE and UKCA certification, it provides a safe and stable AC charging environment.

High Adaptability

This battery charger has a wide AC input voltage range, 100-240 VAC 50/60Hz, which is compatible with various needs. The charger comes with two battery charging cables, one with alligator clips and the other with ring terminals. Rich wiring design to match different needs allows users to quickly establish the connection between the battery and the charger.

Smart Charging

The charger has a 3-stage intelligent charging design: high current (cc), constant voltage (cv), trickle. It can accurately identify battery voltage and automatically switch charging mode and provide fast and efficient charging for lithium batteries; the charger's efficiency can reach up to 92%.

Light & Build-in Safety Protection

The charger has six built-in protection functions to ensure charging safety, including short-circuit protection, over-current protection, over-temperature protection, over-voltage protection, under-voltage protection, and reverse polarity protection. The charger's indicator light can remind the wrong charging status and achieves all-round monitoring and protection.

Easy to Use

Just plug and play operation to quickly establish the battery and charger connection. The product uses a patented plastic profile design, and the shell itself can achieve rapid heat dissipation. The fanless design brings users a zero-noise charging experience and reduces concerns about the installation angle and space of the product.

Package Includes

10A AC-to-DC LFP Portable Battery Charger 1 x	AC Charger Power Adapter Cable 1 x
Ring Terminal Cable 1 x	Alligator Clips Cable 1 x
User Manual 1 x	Blade Fuse 1 x

Ring Terminal Cable
Model	RBC10A2P
Input Voltage	100-240 VAC 50/60 Hz
Input Amps (Max)	5A
Output Voltage	28.8 VDC
Output Amps (Max)	10A
Battery compatibility	LiFePO4 Battery
Power Consumption	290 W
Efficiency	91%@ 110VAC ,93%@230 VAC
Operating temperature range	-29° to 45.5° / ‘-20.2°F to 113.9°F
Storage temperature range	-40℃ - 85℃ /'-40 ℉ - 185℉
Self-Consumption	50 mA
Enclosure Rating	IP20
Humidity	90% - 95%
Electronic Protections	Input Circuit/Short Circuit/Over voltage/Under voltage/Over temperature/Battery reverse connection
Cable	14 AWG
Dimensions (L x W x D)	9.17 x 4.25 x 2.52in / 233 x 108 x64mm
Weight	1.7kg /3 lb
AWG	600 ± 60 mm 14AWG / 1.96 ± 0.19 ft 14AWG
Alligator Clips Cable
AWG	600 ± 60 mm 14AWG / 1.96 ± 0.19 ft 14AWG
AC Charger Power Adapter Cable
AWG	1200mm 18AWG / 3.93 ft 18AWG
Blade Fuse
Current Rating	15A
Certifications：
CE and RoHS compliant	CE, UKCA
FCC Class B Part 15 Compliant	No

Warranty Information

RBC10A2P	2-year material and workmanship warranty

1. What kind of batteries is suitable for this charger?

This charger is specially designed for lithium battery charging. This is a 24V dedicated lithium battery charger, where 24V refers to the voltage platform of the battery. The 24V voltage platform has two forms: the battery itself is a 24V battery, and the other is formed by connecting multiple small voltage platform batteries in series. For example, two 12V lithium batteries are connected in series can form a 24V voltage. To sum up, this charger is designed for 24V lithium iron phosphate.

2. Can this charger wake up a lithium battery that triggers BMS protection?

Yes, this charger has a lithium battery activation function. When the lithium battery cannot be charged and discharged after triggering the BMS protection, this charger can be used to wake up the lithium battery.

3. What capacity of the batteries does this charger support?

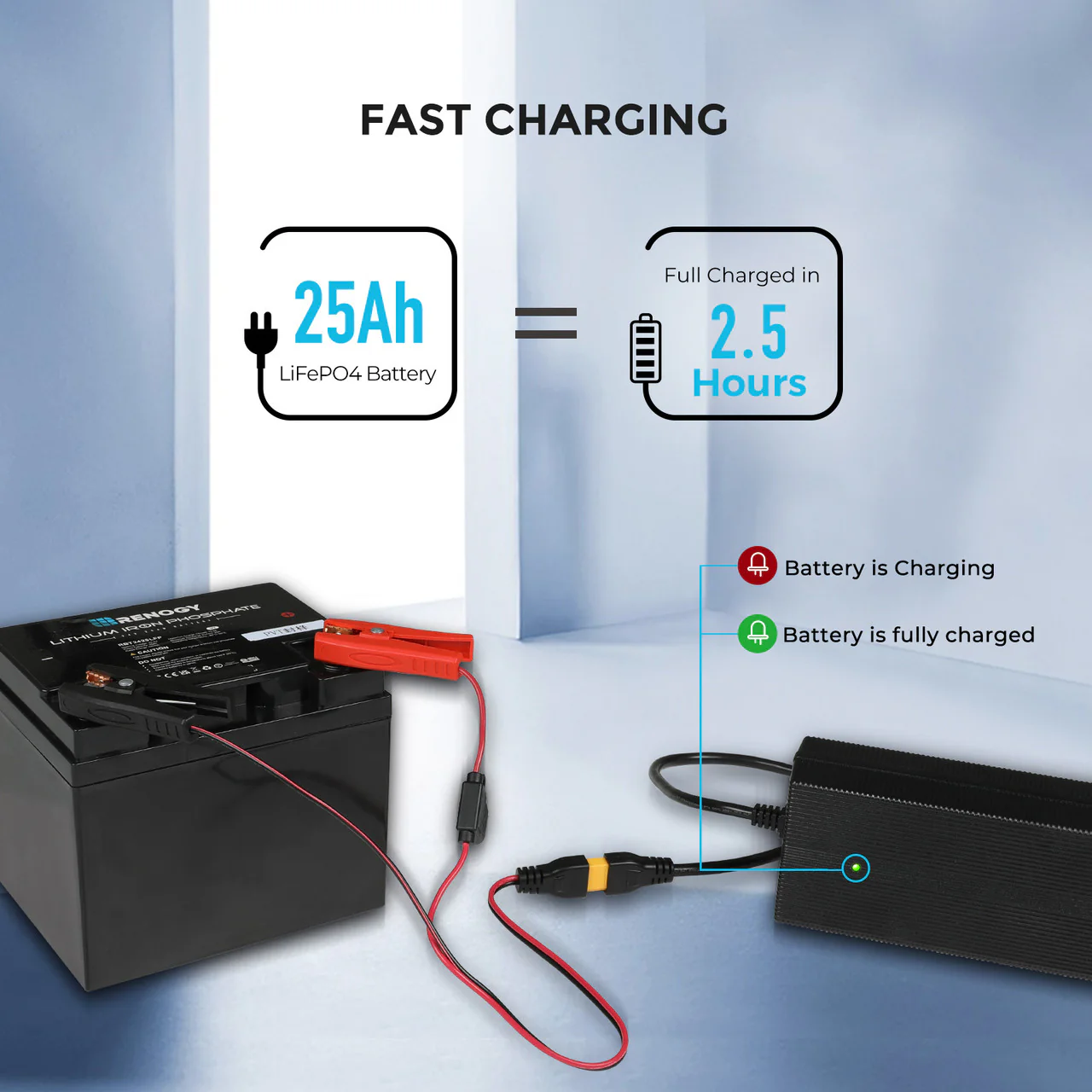

The charging current of this charger is 10A. When using it, you need to make sure the maximum charging current of the battery is ≥10A. The total charging time for a 25Ah lithium battery is 2.5 hours; for a 50Ah lithium battery, the total charging time is 5 hours.

4. What are the accessories for this charger? What functionality does each provide?

1. Accessories include alligator clip battery cable, ring terminal battery cable, and Blade Fuse. 2. The role of the battery cable: Provide two easy-to-operate connection methods to facilitate the user to realize the connection between the charger and the battery quickly 3. The role of the Blade Fuse: to provide the reverse connection protection of the battery. If the charger's positive and negative output terminals are accidentally reversed, it will burn only the fuse, and the AC charger will be safe, providing double protection.

5. What are the phenomena of this charger in different charging stages?

1. When the charger is in the fast high-current charging stage, it will provide a maximum charging current of 10A, and the charger's indicator light is solid red, indicating that it is charging. 2. When the charger is in the constant voltage charging stage, the charging current will continue to decrease to 1A, and the charger's indicator light is solid red, indicating it is charging. 3. When the charger is in the trickle phase, the charging current will be less than 1A, and the charger's indicator light will be green, indicating that it is fully charged.

More questions about your off-grid power system? Learn more from Renogy Learning Center!

Battery Chargers

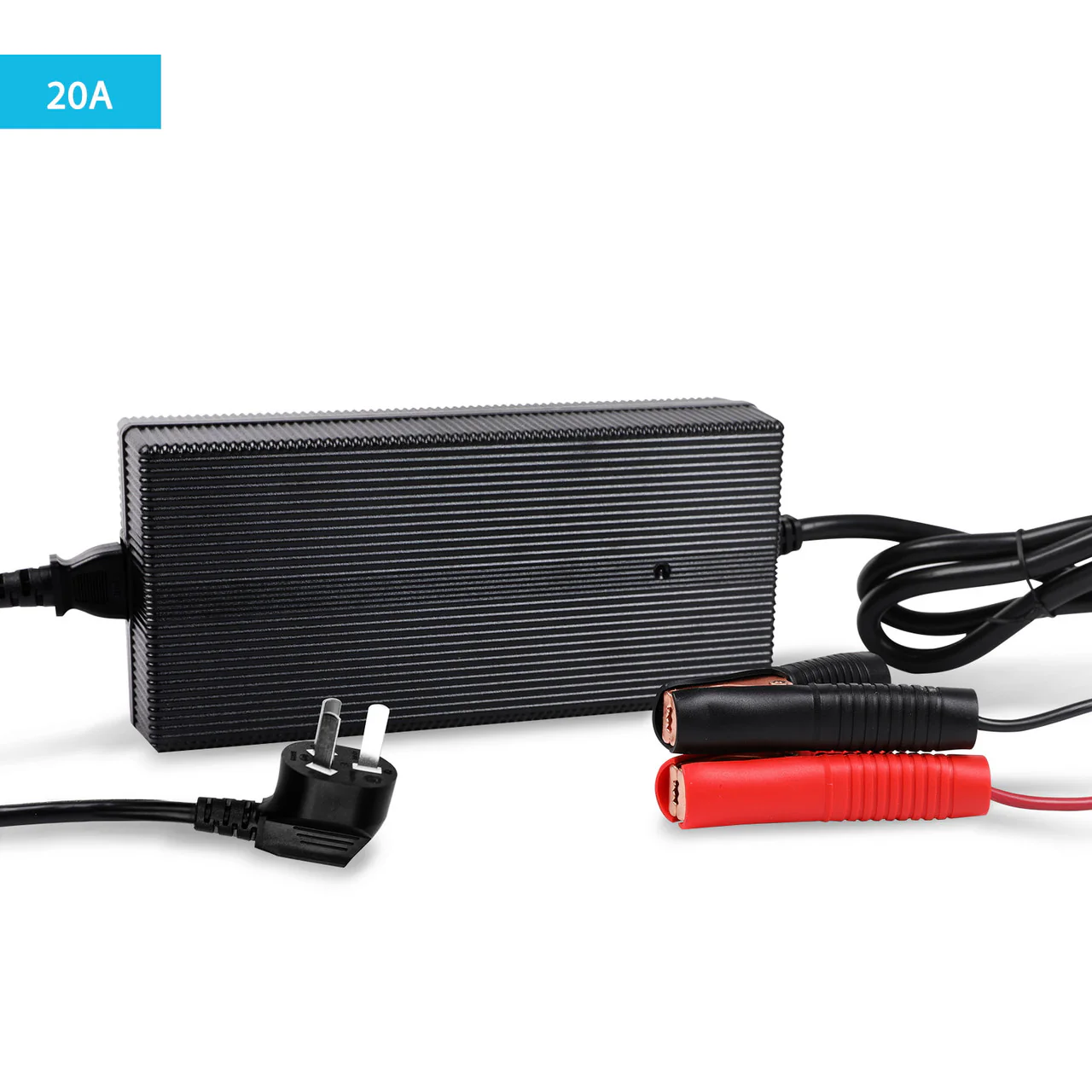

12V 20A AC to DC Lithium Iron Phosphate Battery Charger
